Hydraulic Nut
Hydraulic nuts, such as the SL-HYDNUT hydraulic nut and fractional thread hydraulic nuts, are innovative tools used in heavy-duty applications to facilitate the precise and efficient tightening or loosening of large bolts and studs.

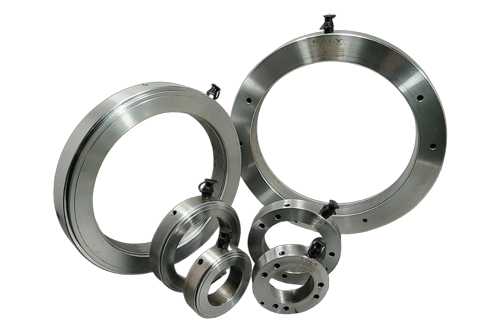

SL-HMV Hydraulic Nuts for Bearing Assembly
SL-HMV series hydraulic nut is mainly used for seamless connection of connecting parts, its working principle is to use high-pressure oil on the shaft to produce a thrust and the sleeve to produce a tension, so that the shaft and the sleeve are evenly con
Description
SL-HMV Hydraulic Nuts for Bearing Assembly
SL-HMV series hydraulic nut has two ways of axial and radial oil injection; the pressure is evenly distributed in the pressure ring; the standard working pressure is 0-150Mpa.
SOLY Machinery Manufacturing is a manufacturer of hydraulic nuts.
The hydraulic nuts for bearings are used for installation and removal of components such as couplings, gears and ship propellers or large pieces on conical seats and for assembling and disassembling bearings. The oil is pumped into the ring nut and the piston is pushed out with a high force suitable for the operations to be performed. The tools can have various threads and dimensions and are driven by a hand pump or a high pressure hydraulic unit eletric or pneumatic.
The hydraulic nuts replace the existing hexagonal nuts to provide a punctual and uniform load at each bolted joint. They allow the tensioning of large diameter bolts with ease and with high and precise preloads. The tightening operation is carried out in narrow spaces and it is possible to eliminate the torsional stresses due to the damage to the thread. They can have upper or lower clamping collar, they are extremely compact, moreover it is possible to connect together any number of hydraulic nuts for simultaneous operation, they garantee an uniform tensioning.
SOLY is specialized in the design of custom made bolting tools, produced according to customer requirements, designing and producing the tightening tool suitable for the customer’s application. Deep tradition in continuous renewal, strong specialization in engineering and design of new technical solutions, absolute quality of the products and effective technical and post-sales assistance service have made SOLY a reference brand for special high pressure hydraulic systems based on to the specific needs of customers. A service center is at the complete disposal of the client for review or carry out maintenance to our products and a well stocked warehouse ensures deliveries of spare parts around the world. Ship all over the world of original spare parts SOLY. Technical support remotely on equipment and hydraulic systems that are equipped with the necessary software.
Installation and disassembly
SL-HMV..E type hydraulic nuts Mounting and dismounting bearings on tapered shafts or sleeves are often both difficult and time-consuming projects. By using SOLY’s hydraulic nuts, such problems can be minimized. The force of the oil pumped into the nut to push the piston is sufficient to mount and dismount the bearing effortlessly, accurately and safely. All hydraulic nuts are supplied with a quick coupler to connect to the hydraulic pump.
Hydraulic Nut mounting method
Hydraulic nut pushes bearing into mounting position on tapered shaft; hydraulic nut screws onto shaft to push back sleeve;
hydraulic nut pushes bearing onto retaining sleeve; hydraulic nut and stop nut used in conjunction to push back sleeve.
Hydraulic Nut Removal Methods
Hydraulic nut and stop ring loosens the tightening sleeve. Hydraulic nut loosens the withdrawal sleeve.
Hydraulic Nut Size
- Hydraulic nuts in metric sizes from SL-MHV 10E (d=50 mm) to SL-HMV200E (d–1000 mm);
- Suitable for shaft diameters from 50 mm to 1000 mm;
- Special threads are available on request.
Parameters
| Model | G | Pressure ring inner diameter | Outer diameter of pressure ring | External diameter | B | B1 | Allowable piston displacement | Piston area | Weights |
| Model | Screw thread | d1（mm） | d2（mm） | d3（mm） | mm | mm | mm | mm² | kg |
| SL-HMV 10E | M 50 x 1.5 | 50.5 | 104 | 114 | 38 | 4 | 5 | 2900 | 2.7 |
| SL-HMV 11E | M 55 x 2 | 55.5 | 109 | 120 | 38 | 4 | 5 | 3150 | 2.75 |
| SL-HMV 12E | M 60 x 2 | 60.5 | 115 | 125 | 38 | 5 | 5 | 3300 | 2.8 |
| SL-HMV 13E | M 65 x 2 | 65.5 | 121 | 130 | 38 | 5 | 5 | 3600 | 3 |
| SL-HMV 14E | M 70 x 2 | 70.5 | 127 | 135 | 38 | 5 | 5 | 3800 | 3.2 |
| SL-HMV 15E | M 75 x 2 | 75.5 | 132 | 140 | 38 | 5 | 5 | 4000 | 3.4 |
| SL-HMV 16E | M 80 x 2 | 80.5 | 137 | 146 | 38 | 5 | 5 | 4200 | 3.7 |
| SL-HMV 17E | M 85 x 2 | 85.5 | 142 | 150 | 38 | 5 | 5 | 4400 | 3.75 |
| SL-HMV 18E | M 90 x 2 | 90.5 | 147 | 156 | 38 | 5 | 5 | 4700 | 4 |
| SL-HMV 19E | M 95 x 2 | 95.5 | 153 | 162 | 38 | 5 | 5 | 4900 | 4.3 |
| SL-HMV 20E | M 100 x 2 | 100.5 | 158 | 166 | 38 | 6 | 5 | 5100 | 4.4 |
| SL-HMV 21E | M 105 x 2 | 105.5 | 163 | 172 | 38 | 6 | 5 | 5300 | 4.65 |
| SL-HMV 22E | M 110 x 2 | 110.5 | 169 | 178 | 38 | 6 | 5 | 5600 | 4.95 |
| SL-HMV 23E | M 115 x 2 | 115.5 | 174 | 182 | 38 | 6 | 5 | 5800 | 5 |
| SL-HMV 24E | M 120 x 2 | 120.5 | 179 | 188 | 38 | 6 | 5 | 6000 | 5.25 |
| SL-HMV 25E | M 125 x 2 | 125.5 | 184 | 192 | 38 | 6 | 5 | 6200 | 5.35 |
| SL-HMV 26E | M 130 x 2 | 130.5 | 190 | 198 | 38 | 6 | 5 | 6400 | 5.65 |
| SL-HMV 27E | M 135 x 2 | 135.5 | 195 | 204 | 38 | 6 | 5 | 6600 | 5.9 |
| SL-HMV 28E | M 140 x 2 | 140.5 | 200 | 208 | 38 | 7 | 5 | 6800 | 6 |
| SL-HMV 29E | M 145 x 2 | 145.5 | 206 | 214 | 39 | 7 | 5 | 7300 | 6.5 |
| SL-HMV30E | M 150 x 2 | 150.5 | 211 | 220 | 39 | 7 | 5 | 7500 | 6.6 |
| SL-HMV 31E | M 155 x 3 | 155.5 | 218 | 226 | 39 | 7 | 5 | 8100 | 6.95 |
| SL-HMV 32E | M 160 x 3 | 160.5 | 224 | 232 | 40 | 7 | 6 | 8600 | 7.6 |
| SL-HMV 33E | M 165 x 3 | 165.5 | 229 | 238 | 40 | 7 | 6 | 8900 | 7.9 |
| SL-HMV 34E | M 170 x 3 | 170.5 | 235 | 244 | 41 | 7 | 6 | 9400 | 8.4 |
| SL-HMV 36E | M 180 x 3 | 180.5 | 247 | 256 | 41 | 7 | 6 | 10300 | 9.15 |
| SL-HMV 38E | M 190 x 3 | 191 | 259 | 270 | 42 | 8 | 7 | 11500 | 10.5 |
| SL-HMV 40E | M 200 x 3 | 201 | 271 | 282 | 43 | 8 | 8 | 12500 | 11.5 |
| SL-HMV 41E | Tr 205 x 4 | 207 | 276 | 288 | 43 | 8 | 8 | 12800 | 12 |
| SL-HMV 42E | Tr 210 x 4 | 212 | 282 | 294 | 44 | 8 | 9 | 13400 | 12.5 |
| SL-HMV 43E | Tr 215 x 4 | 217 | 287 | 300 | 44 | 8 | 9 | 13700 | 13 |
| SL-HMV 44E | Tr 220 x 4 | 222 | 293 | 306 | 44 | 8 | 9 | 14400 | 13.5 |
| SL-HMV 45E | Tr 225 x 4 | 227 | 300 | 312 | 45 | 8 | 9 | 15200 | 14.5 |
| SL-HMV 46E | Tr 230 x 4 | 232 | 305 | 318 | 45 | 8 | 9 | 15500 | 14.5 |
| SL-HMV 47E | Tr 235 x 4 | 237 | 311 | 326 | 46 | 8 | 10 | 16200 | 16 |
| SL-HMV 48E | Tr 240 x 4 | 242 | 316 | 330 | 46 | 9 | 10 | 16500 | 16 |
| SL-HMV 50E | Tr 250 x 4 | 252 | 329 | 342 | 46 | 9 | 10 | 17600 | 17.5 |
| SL-HMV 52E | Tr 260 x 4 | 262 | 341 | 356 | 47 | 9 | 11 | 18800 | 19.5 |
| SL-HMV 54E | Tr 270 x 4 | 272 | 352 | 368 | 48 | 9 | 12 | 19800 | 20.5 |
| SL-HMV 56E | Tr 280 x 4 | 282 | 363 | 380 | 49 | 9 | 12 | 21100 | 22 |
| SL-HMV 58E | Tr 290 x 4 | 292 | 375 | 390 | 49 | 9 | 13 | 22400 | 22.5 |
| SL-HMV 60E | Tr 300 x 4 | 302 | 386 | 404 | 51 | 10 | 14 | 23600 | 25.5 |
| SL-HMV 62E | Tr 310 x 5 | 312 | 397 | 416 | 52 | 10 | 14 | 24900 | 27 |
| SL-HMV 64E | Tr 320 x 5 | 322 | 409 | 428 | 53 | 10 | 14 | 26300 | 29.5 |
| SL-HMV 66E | Tr 330 x 5 | 332 | 419 | 438 | 53 | 10 | 14 | 27000 | 30 |
| SL-HMV 68E | Tr 340 x 5 | 342 | 430 | 450 | 54 | 10 | 14 | 28400 | 31.5 |
| SL-HMV 69E | Tr 345 x 5 | 347 | 436 | 456 | 54 | 10 | 14 | 29400 | 32.5 |
| SL-HMV 70E | Tr 350 x 5 | 352 | 442 | 464 | 56 | 10 | 14 | 29900 | 35 |
| SL-HMV 72E | Tr 360 x 5 | 362 | 455 | 472 | 56 | 10 | 15 | 31300 | 35.5 |
| SL-HMV 73E | Tr 365 x 5 | 367 | 460 | 482 | 57 | 11 | 15 | 31700 | 38.5 |
| SL-HMV 74E | Tr 370 x 5 | 372 | 466 | 486 | 57 | 11 | 16 | 32800 | 39 |
| SL-HMV 76E | Tr 380 x 5 | 382 | 476 | 498 | 58 | 11 | 16 | 33500 | 40.5 |
| SL-HMV 77E | Tr 385 x 5 | 387 | 483 | 504 | 58 | 11 | 16 | 34700 | 41 |
| SL-HMV 80E | Tr 400 x 5 | 402 | 499 | 522 | 60 | 11 | 17 | 36700 | 45.5 |
| SL-HMV 82E | Tr 410 x 5 | 412 | 510 | 534 | 61 | 11 | 17 | 38300 | 48 |
| SL-HMV 84E | Tr 420 x 5 | 422 | 522 | 546 | 61 | 11 | 17 | 40000 | 50 |
| SL-HMV 86E | Tr 430 x 5 | 432 | 532 | 556 | 62 | 11 | 17 | 40800 | 52.5 |
| SL-HMV 88E | Tr 440 x 5 | 442 | 543 | 566 | 62 | 12 | 17 | 42500 | 54 |
| SL-HMV 90E | Tr 450 x 5 | 452 | 554 | 580 | 64 | 12 | 17 | 44100 | 57.5 |
| SL-HMV 92E | Tr 460 x 5 | 462 | 565 | 590 | 64 | 12 | 17 | 45100 | 60 |
| SL-HMV 94E | Tr 470 x 5 | 472 | 576 | 602 | 65 | 12 | 18 | 46900 | 62 |
| SL-HMV 96E | Tr 480 x 5 | 482 | 587 | 612 | 65 | 12 | 19 | 48600 | 63 |
| SL-HMV 98E | Tr 490 x 5 | 492 | 597 | 624 | 66 | 12 | 19 | 49500 | 66 |
| SL-HMV 100E | Tr 500 x 5 | 502 | 609 | 636 | 67 | 12 | 19 | 51500 | 70 |
| SL-HMV 102E | Tr 510 x 6 | 512 | 624 | 648 | 68 | 12 | 20 | 53300 | 74 |
| SL-HMV 104E | Tr 520 x 6 | 522 | 634 | 658 | 68 | 13 | 20 | 54300 | 75 |
| SL-HMV 106E | Tr 530 x 6 | 532 | 645 | 670 | 69 | 13 | 21 | 56200 | 79 |
| SL-HMV 108E | Tr 540 x 6 | 542 | 657 | 682 | 69 | 13 | 21 | 58200 | 81 |
| SL-HMV 110E | Tr 550 x 6 | 552 | 667 | 693 | 70 | 13 | 21 | 59200 | 84 |
| SL-HMV 112E | Tr 560 x 6 | 562 | 678 | 704 | 71 | 13 | 22 | 61200 | 88 |
| SL-HMV 114E | Tr 570 x 6 | 572 | 689 | 716 | 72 | 13 | 23 | 63200 | 91 |
| SL-HMV 116E | Tr 580 x 6 | 582 | 699 | 726 | 72 | 13 | 23 | 64200 | 94 |
| SL-HMV 120E | Tr 600 x 6 | 602 | 721 | 748 | 73 | 13 | 23 | 67300 | 100 |
| SL-HMV 126E | Tr 630 x 6 | 632 | 754 | 782 | 74 | 14 | 23 | 72900 | 110 |
| SL-HMV 130E | Tr 650 x 6 | 652 | 775 | 804 | 75 | 14 | 23 | 76200 | 115 |
| SL-HMV 134E | Tr 670 x 6 | 672 | 796 | 826 | 76 | 14 | 24 | 79500 | 120 |
| SL-HMV 138E | Tr 690 x 6 | 692 | 819 | 848 | 77 | 14 | 25 | 84200 | 127 |
| SL-HMV 142E | Tr 710 x 7 | 712 | 840 | 870 | 78 | 15 | 25 | 87700 | 135 |
| SL-HMV 150E | Tr 750 x 7 | 752 | 883 | 912 | 79 | 15 | 25 | 95200 | 146 |
| SL-HMV 160E | Tr 800 x 7 | 802 | 936 | 965 | 80 | 16 | 25 | 103900 | 161 |
| SL-HMV 170E | Tr 850 x 7 | 852 | 990 | 1020 | 83 | 16 | 26 | 114600 | 181 |
| SL-HMV 180E | Tr 900 x 7 | 902 | 1043 | 1075 | 86 | 17 | 30 | 124100 | 205 |
| SL-HMV 190E | Tr 950 x 8 | 952 | 1097 | 1126 | 86 | 17 | 30 | 135700 | 218 |
| SL-HMV 200E | Tr 1000 x 8 | 1002 | 1150 | 1180 | 88 | 17 | 34 | 145800 | 239 |
